Dallas, TX · May 2026

Dallas Opal Full-Flake Garage Floor Coating

Ace Garage Pros transformed this 440 sq ft Dallas garage by removing a failing textured beige floor coating and installing a bright, pearl-white full-flake flooring system. The old paint and texture were mechanically ground back to bare concrete before the floor was finished with a white base coat, full-broadcast Opal decorative flake, and a protective clear topcoat. The project was completed in two days.

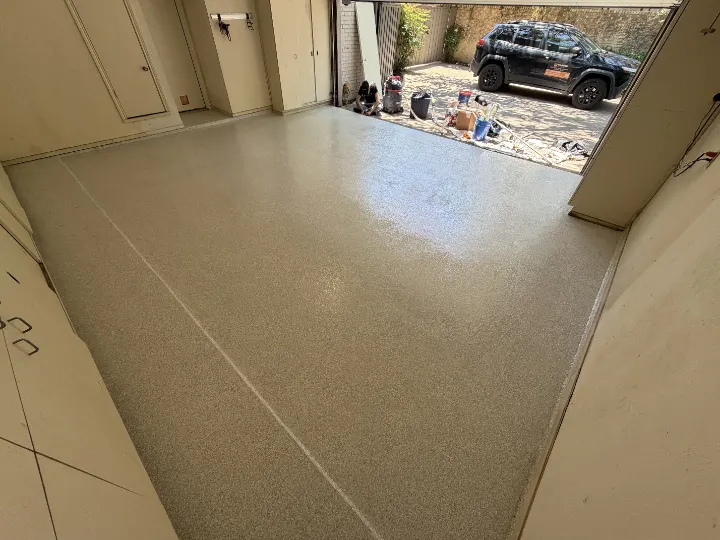

Completed 440-square-foot Dallas garage floor coated with a white Opal full-flake epoxy system.
Dallas garage floor during removal of a failing textured paint coating before epoxy installation.
BeforeAfter

1 of 4

Customer Goal

The homeowner wanted to replace the failing textured beige floor paint with a brighter, more durable garage floor. He selected the Opal flake blend over a white base coat to create a clean, pearl-white appearance that would refresh the entire garage.

Starting Condition

The 440 sq ft garage had an existing textured and painted concrete floor with a beige appearance. The coating was failing and no longer properly bonded to the concrete, creating an inconsistent and worn-looking surface. Because the previous finish was unstable, it could not be used as a dependable foundation for the new flooring system.

Preparation

  1. Cleared and inspected the 440 sq ft garage floor.
  2. Evaluated the existing textured and painted coating for loose and poorly bonded areas.
  3. Mechanically diamond-ground the entire floor back to the original concrete.
  4. Removed the previous texture, beige paint, and loose coating material.
  5. Detailed the concrete along the walls, cabinets, corners, perimeter, and garage-door opening.
  6. Continued grinding until a clean and stable concrete surface was exposed.
  7. Vacuumed the floor thoroughly to remove grinding dust and loose debris.
  8. Inspected the prepared concrete before beginning the new coating installation.

Installation

  1. Applied a white base coat over the mechanically prepared concrete.
  2. Broadcast Opal decorative flake throughout the wet coating to create a consistent full-flake finish.
  3. Applied the flooring system carefully around the built-in cabinets, walls, doorway, corners, and fixed garage features.
  4. Extended the decorative finish across the entire 440 sq ft floor.
  5. Removed loose excess flake and refined the surface before applying the final coating.
  6. Sealed the decorative floor with a protective clear topcoat.
  7. Detailed the garage-door threshold and perimeter edges for a clean finished transition.
  8. Completed a final inspection of the floor, edges, and overall flake coverage.

Challenges

  • Removed a failing textured and painted coating that was no longer properly bonded to the concrete.
  • Ground the floor back to bare concrete rather than installing the new system over an unstable surface.
  • Eliminated the worn beige appearance and replaced it with a bright pearl-white finish.
  • Created consistent flake coverage around existing cabinets, doors, walls, corners, and fixed garage features.
  • Produced a uniform finish across concrete that had been concealed beneath the previous textured coating.
  • Maintained a clean transition between the coated garage floor and the exterior surface.

Outcome

The failing beige floor coating was completely removed and replaced with a bright, pearl-white full-flake system using a white base coat and Opal decorative flake. The finished floor gave the 440 sq ft garage a cleaner, lighter, and more coordinated appearance while providing a properly bonded coating system for everyday garage use. The project was completed in two days.

Maintenance Guidance

  • Sweep or blow loose dirt, sand, leaves, and debris from the floor regularly.
  • Mop the surface with water and a mild, nonabrasive cleaner when deeper cleaning is needed.
  • Wipe up automotive fluids, chemicals, paint, and other spills promptly.
  • Avoid dragging sharp tools, metal cabinets, appliances, or heavy equipment directly across the coating.
  • Use protective pads or a dolly when moving heavy storage equipment.
  • Avoid harsh solvents and abrasive cleaning products that could dull the clear finish.
  • Clean darker automotive marks promptly to preserve the bright appearance of the Opal floor.
  • Contact Ace Garage Pros if peeling, bubbling, unusual discoloration, or another coating concern appears.

Owner Takeaway

A new floor-coating system is only as dependable as the surface beneath it. When an existing painted or textured coating is failing, applying another coating over it would leave the new system dependent on the weak bond of the old material. Grinding this floor back to the original concrete was the essential step that allowed the homeowner to receive both the pearl-white appearance he wanted and a properly prepared flooring system.
