Customer Goal
Finish the garage with new interior paint and a professionally coated floor so the entire space would have a complete, coordinated appearance and be ready for everyday use.
1 of 6

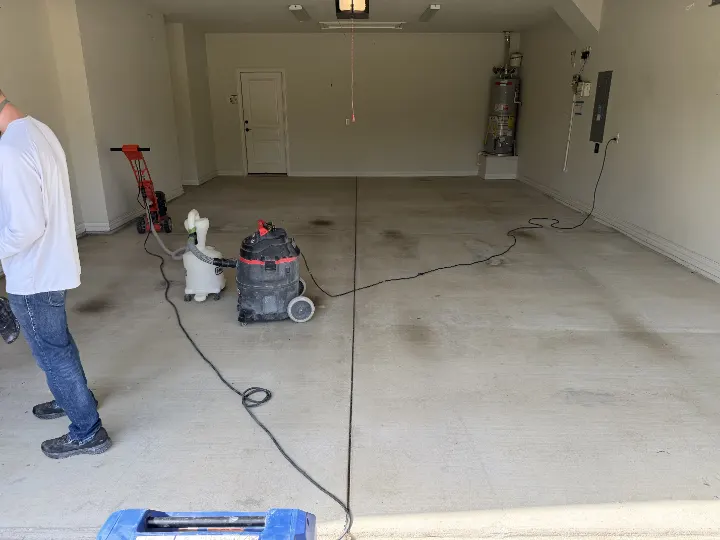

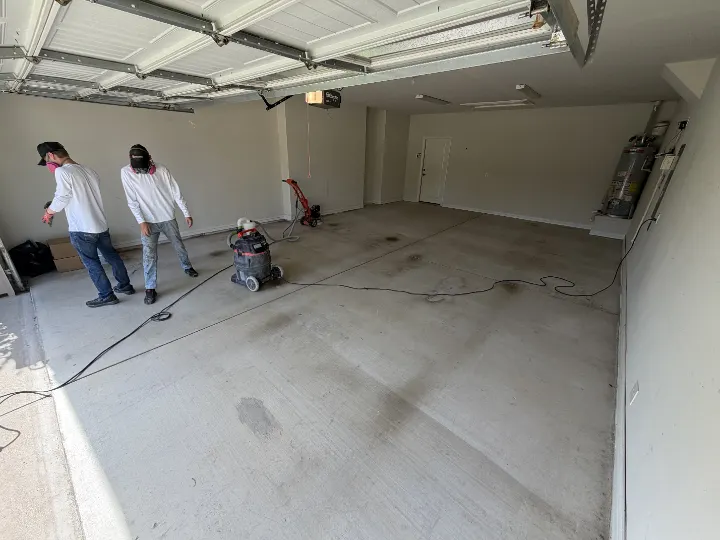

Starting Condition
The garage started with an uncoated concrete floor showing visible staining, discoloration, and normal signs of use. The light-colored walls and ceiling were functional but gave the garage a basic, unfinished appearance. Existing control joints divided the large slab into multiple sections.
Preparation
- Cleared and inspected the 667 sq ft garage work area.
- Mechanically diamond-ground the concrete floor to create the proper surface profile for coating.
- Detailed the slab around wall edges, corners, control joints, and fixed utility areas.
- Removed grinding dust and loose surface debris with dust-collection and vacuum equipment.
- Prepared the walls, ceiling, and trim for repainting.
- Protected electrical panels, plumbing, fixtures, and other surfaces outside the work area.
Installation
- Painted the garage walls with SW 7069 Iron Ore in an Eg-Shel/Satin finish.
- Painted the trim with SW 7069 Iron Ore in a Semi-Gloss finish.
- Painted the ceiling with SW 7005 Pure White in a Flat finish.
- Applied a moisture vapor barrier over the prepared concrete slab.
- Applied a light grey base coat.
- Broadcast Tidal Wave decorative flake across the floor to create a uniform full-flake finish.
- Removed loose excess flake and sealed the system with a protective clear topcoat.
- Completed final detailing and inspected the finished floor and painted surfaces.
Challenges
- Coordinated interior painting and floor-coating work as part of the same three-day project.
- Maintained consistent paint and coating details around electrical equipment, plumbing, wall edges, corners, and other fixed garage components.
- Created an even full-flake appearance across a large 667 sq ft floor containing multiple control joints.
- Covered the visually inconsistent bare concrete with a uniform finished flooring system.

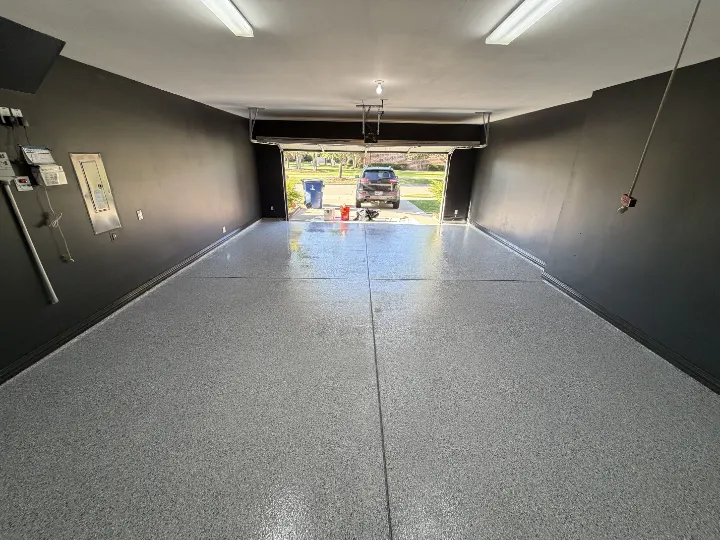

Outcome
The 667 sq ft garage was completed in three days with Iron Ore walls and trim, a Pure White ceiling, and a Tidal Wave full-flake floor installed over a light grey base coat and moisture vapor barrier. The dark walls contrast with the lighter floor and ceiling, giving the garage a bold, coordinated appearance. The finished floor provides a sealed, durable, and easy-to-clean surface for normal daily garage use.
Maintenance Guidance
- Sweep or blow out loose dirt, sand, and debris regularly.
- Mop the floor with water and a mild cleaner when deeper cleaning is needed.
- Wipe up automotive fluids and other spills promptly.
- Avoid dragging sharp metal tools, equipment, or heavy objects directly across the coating.
- Use protective pads when moving heavy cabinets, appliances, or storage equipment.
- Contact Ace Garage Pros if bubbling, peeling, unusual discoloration, or other coating concerns appear.
Owner Takeaway
This project demonstrates the importance of selecting the floor and paint colors as one coordinated system. The darker Iron Ore walls make the lighter Tidal Wave floor and Pure White ceiling stand out, while the full-flake finish keeps the large floor visually consistent. When homeowners are finishing the entire garage, planning the paint and flooring together usually produces a more complete result than treating them as separate upgrades.
