Yard and cleaning tools
Rakes, shovels, brooms, trimmers, blowers, and hoses arranged for quick access.
Slatwall
Reinforced-Core Slatwall 4×8
A reinforced 32-square-foot wall zone with a concealed metal core, higher rating, and premium finish choices.
$1,300 installed
- Size
- Height: 48 in; Width: 96 in
- Usable storage
- 32 sq ft of organized wall surface per zone
- Rated capacity
- Maximum panel load: 200 lb per sq ft; Wall Coverage: 32 sq ft

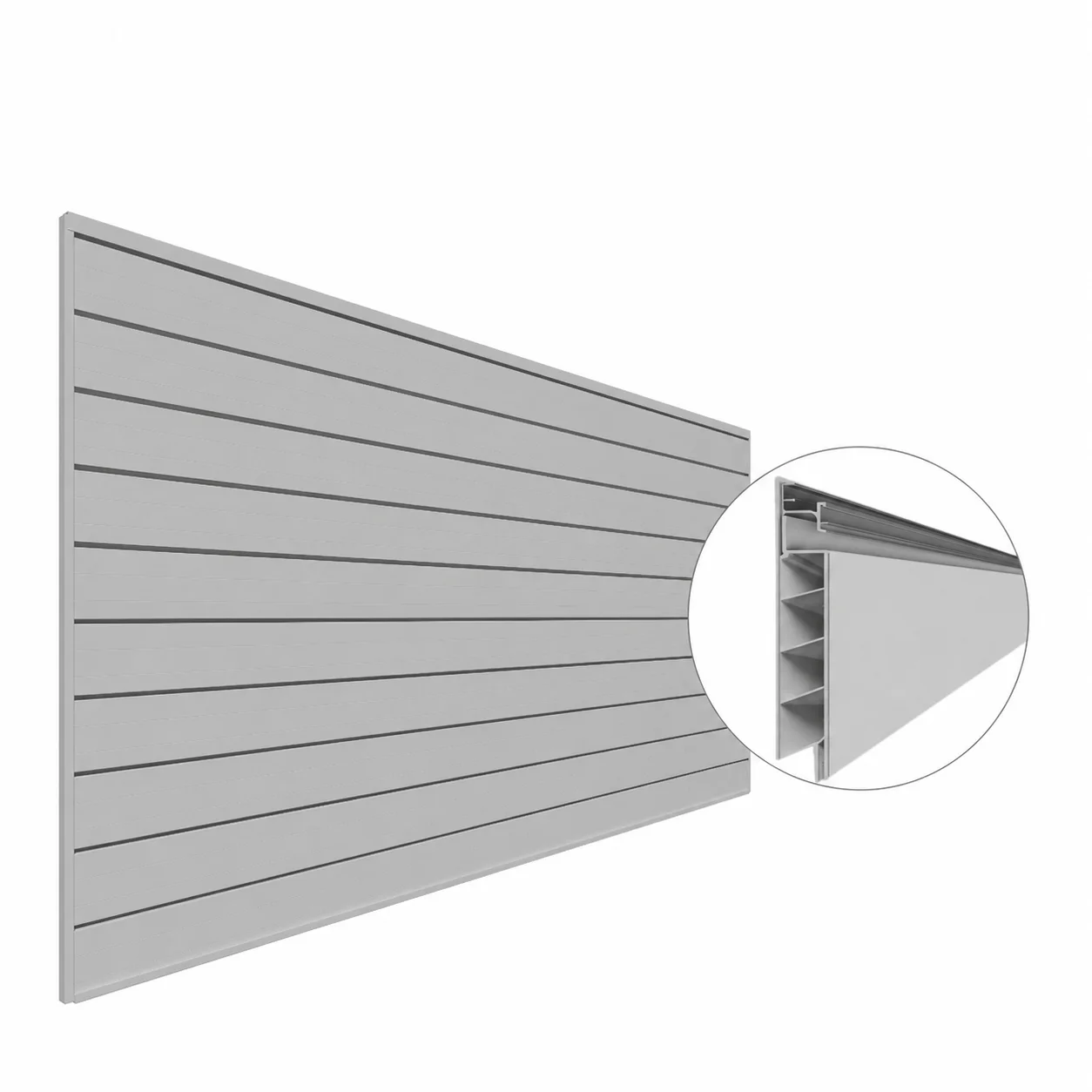

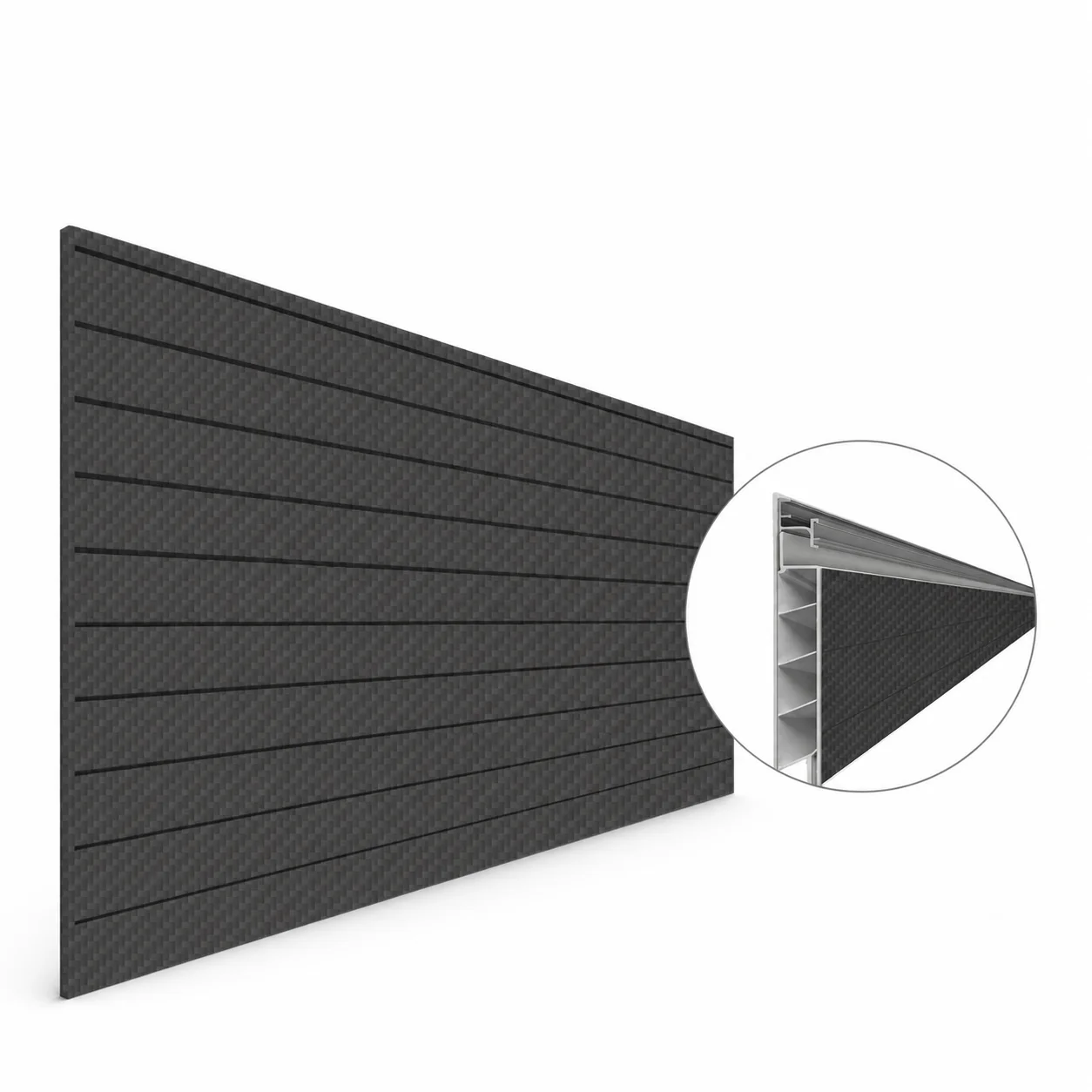

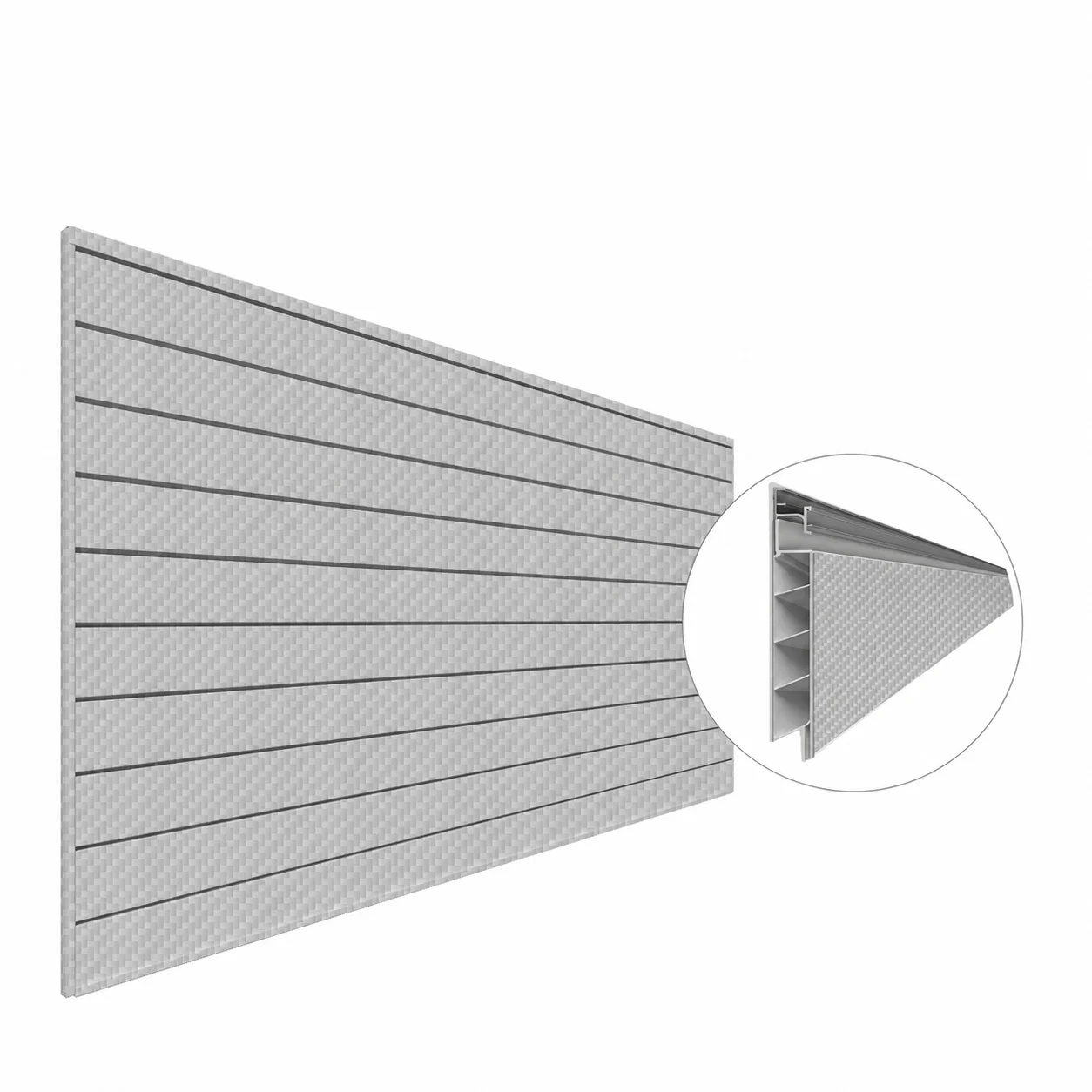

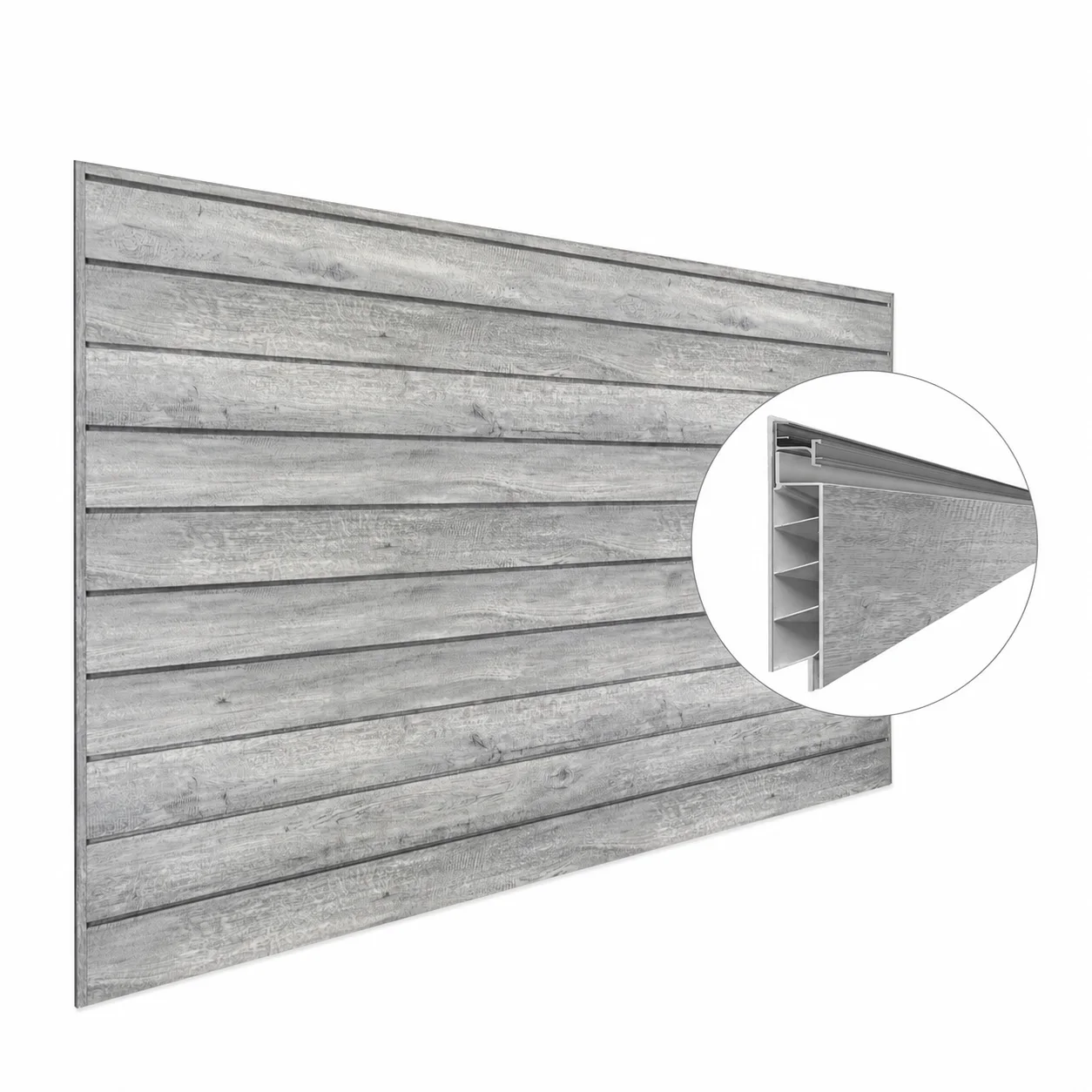

Available colors and finishes
- White
- Gray
- Black carbon-fiber texture
- Gray wood texture
- Silver carbon-fiber texture
Images show the preferred configuration and available finish examples. The written quote confirms the exact product, finish, quantities, installed limit, and price before ordering.
Storage Job
What It Stores Well
A modular four-by-eight-foot wall-storage zone that accepts compatible hooks, shelves, and baskets. Accessories can move as tools, bikes, sports gear, and family needs change.
Bikes and sports equipment
Bikes, scooters, balls, helmets, racquets, and bags grouped into a family zone.
Flexible project storage
Frequently used tools, cords, shelves, and baskets that can move as needs change.
Strong matches
- Tools
- Sports gear
- Yard equipment
Know the limitations
- Accessories have separate ratings and are not included unless listed
- Different panel families cannot be interlocked
- Panel capacity does not make every accessory or wall capable of the same load
- Obstructions may reduce usable area below 32 sq ft
Technical Specifications
Measurements, Materials, and Limits
- Nominal coverage
- 4 ft H × 8 ft W
- Wall coverage
- 32 sq ft
- Rated panel load
- Up to 200 lb per sq ft under the specified installation
- Typical stud spacing
- 16 or 24 in on center
- Panel material
- Impact-resistant PVC with concealed aluminum core
- Finish count
- Five solid or textured choices
Construction
Impact-resistant PVC face with a concealed aluminum reinforcing core
Warranty
Limited lifetime product warranty or an approved equivalent; exact coverage is confirmed in the quote.
What is included
- Ten interlocking wall slats for one nominal 4×8 zone
- Perimeter trim and panel fasteners
- Professional wall layout, cutting, mounting, and cleanup
- Accessory layout consultation; accessories are selected separately or in a package
Care
Wipe panels with a soft cloth and mild material-compatible cleaner. Inspect accessories, fasteners, and item placement periodically.
Fit Check
Will It Fit Your Garage?
Final approval requires suitable framing or backing plus clearance from doors, windows, outlets, utilities, controls, vehicles, and walking paths.
- 1
At least 96 in of usable wall width and 48 in of clear wall height per zone
- 2
Verified stud spacing, masonry, or structural backing
- 3
Clearance from doors, windows, panels, outlets, controls, plumbing, and utilities
- 4
Open space in front for stored items and safe circulation
- 5
Compatible accessories for each item weight and shape
Safety and Loading
Before Anything Is Installed
Follow the lower of the panel, accessory, fastener, and supporting-wall limits.
Keep heavy items low enough for safe lifting.
Do not block panels, controls, doors, safety equipment, or required utility access.
Product ratings assume the specified installation and loading conditions. Ace states the approved installed limit in writing after the site review.
Installed Packages
Where This Product Fits in a Complete Build
Product Questions
Frequently Asked Questions
Why choose the reinforced core?
It adds rigidity, supports the higher specified panel rating, and works with verified 16- or 24-inch stud layouts.
Can hooks and shelves move later?
Yes. Compatible accessories can be repositioned while remaining within their ratings.
Product Confirmation
The Specification Is the Promise
Ace selects storage by the dimensions, construction, capacity, finish, compatibility, warranty, and storage job shown here. If the preferred item is unavailable, we may propose an equivalent or better substitute. You receive the exact product, finish, quantities, limits, and installed price in writing before anything is ordered.
Plan the Whole Storage Layout
Match daily-use gear to the wall, tools and controlled storage to cabinets, and seasonal overflow to verified overhead space.
