High-use tools
Frequently used hand and power tools that benefit from stronger drawers, doors, and shelves.
Cabinet Sets
Heavy-Duty 5-Piece 92-Inch Cabinet Set
A compact commercial-style workshop wall with 18-gauge steel, high component ratings, and a full-depth worktop.
From $4,975 installed
- Size
- Depth: 24 in; Installed Height: 84.75 in; Width: 92 in
- Usable storage
- Approximately 15.3 sq ft wall-to-floor layout envelope; usable internal area varies by configuration
- Rated capacity
- Base cabinet load: 1,000 lb; Layout footprint: 15.3 sq ft; Tall locker load: 1,000 lb; Upper cabinet load: 200 lb
Available colors and finishes
- Black
- Red
- Gray
- White with platinum doors
- Bamboo worktop
- Stainless-steel worktop

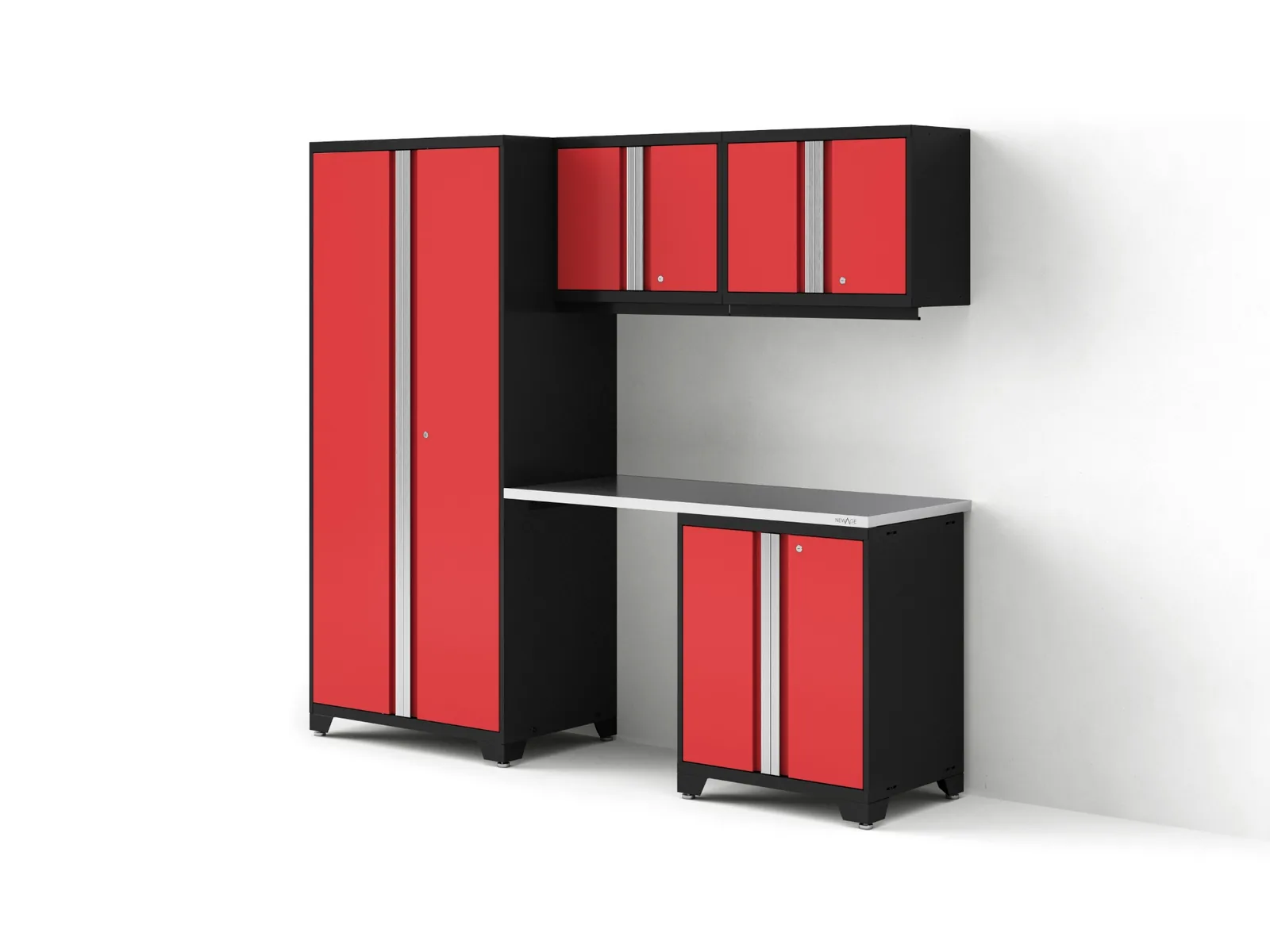

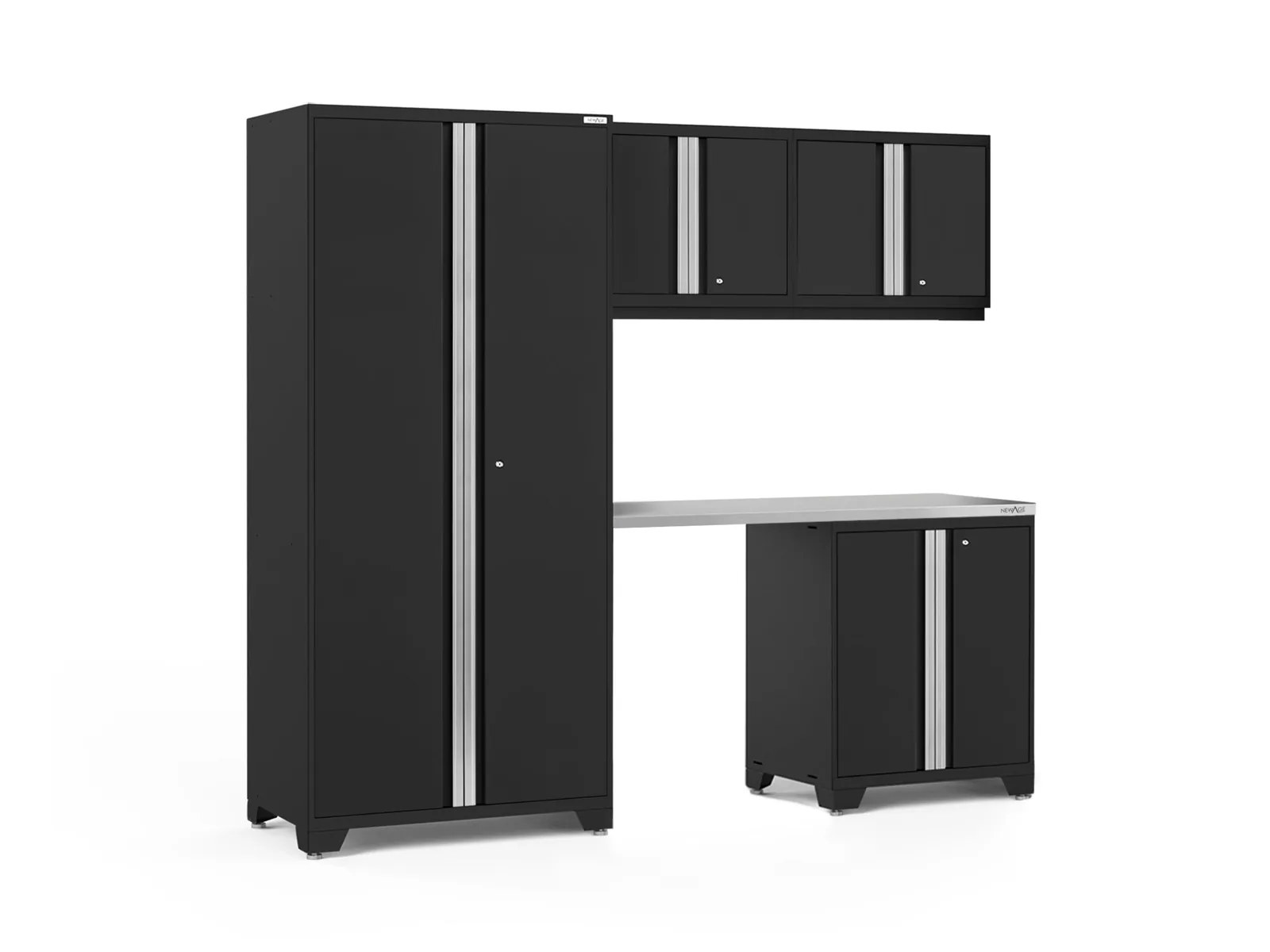

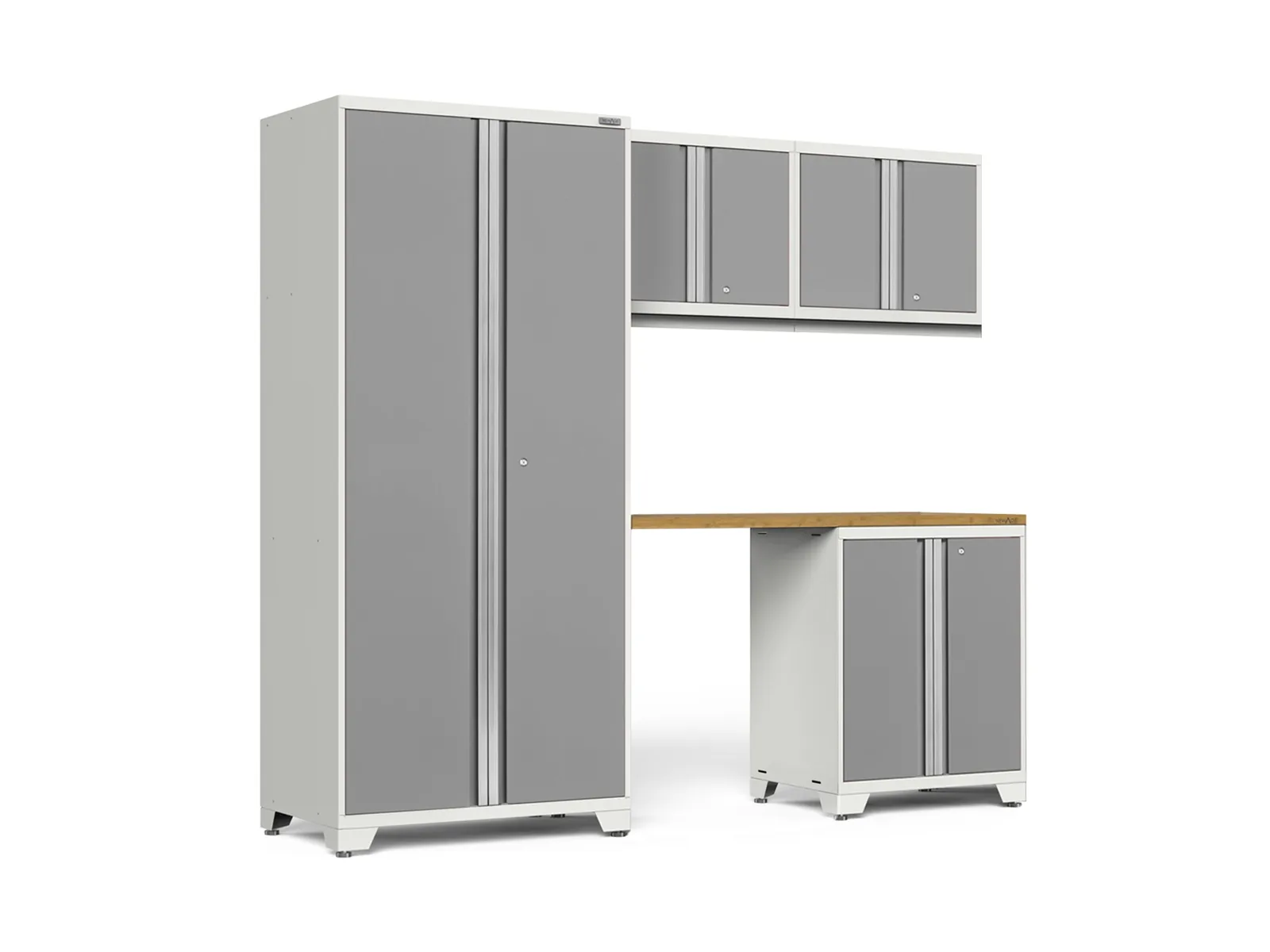

Images show the preferred configuration and available finish examples. The written quote confirms the exact product, finish, quantities, installed limit, and price before ordering.
Storage Job
What It Stores Well
A compact heavy-duty steel cabinet configuration for frequent workshop use. The photo is representative; Ace may use a comparable system that meets or exceeds the listed fit, construction, capacity, finish, and warranty requirements.
Compact workshop
A focused repair and fabrication zone where durability matters more than maximum wall length.
Heavy household storage
Dense but appropriate belongings distributed within each component rating.
Strong matches
- Enclosed storage
- Tools
- A dedicated work zone
Know the limitations
- 24-inch depth requires vehicle and walking clearance
- Finish, worktop, accessories, and arrangement affect price
- Component ratings remain separate
- A lockable household cabinet is not automatically approved hazardous-material storage
Technical Specifications
Measurements, Materials, and Limits
- Overall width
- Approximately 92 in
- Cabinet depth
- 24 in
- Installed height
- Approximately 84.75 in
- Steel construction
- 18-gauge double-wall powder-coated steel
- Tall-locker rating
- Up to 1,000 lb, component-specific
- Base-cabinet rating
- Up to 1,000 lb, component-specific
- Upper-cabinet rating
- Up to 200 lb, component-specific
Construction
18-gauge double-wall powder-coated steel
Warranty
Selected cabinet system includes a limited lifetime product warranty or an approved equivalent.
What is included
- One heavy-duty tall locker
- Upper cabinets
- Heavy-duty base storage
- Choice of bamboo or stainless-steel worktop
- Leveling legs, wall anchoring, assembly, and alignment
Care
Wipe powder-coated steel with a soft damp cloth and mild cleaner. Inspect drawers, hinges, locks, leveling feet, and anchors periodically.
Fit Check
Will It Fit Your Garage?
Final approval requires a level installation area and confirmation of clear wall width, depth, door swing, outlets, base conditions, and worktop selection.
- 1
At least 92 in of uninterrupted wall
- 2
24 in cabinet depth plus vehicle, walking, door, and drawer clearance
- 3
Ceiling clearance for approximately 84.75 in installed height
- 4
A level floor and suitable wall anchoring
- 5
A layout preserving electrical and utility access
Safety and Loading
Before Anything Is Installed
Tall and upper cabinets require anti-tip and wall anchoring.
Observe each component load limit.
Keep household chemicals in original labeled containers and follow their storage instructions.
Product ratings assume the specified installation and loading conditions. Ace states the approved installed limit in writing after the site review.
Installed Packages
Where This Product Fits in a Complete Build
Product Questions
Frequently Asked Questions
What makes this heavy duty?
The selected system uses 18-gauge double-wall steel and higher component-specific ratings than the standard-depth line.
Can the arrangement change?
Compatible components can often be adjusted after the site layout and budget are confirmed.
Product Confirmation
The Specification Is the Promise
Ace selects storage by the dimensions, construction, capacity, finish, compatibility, warranty, and storage job shown here. If the preferred item is unavailable, we may propose an equivalent or better substitute. You receive the exact product, finish, quantities, limits, and installed price in writing before anything is ordered.
Plan the Whole Storage Layout
Match daily-use gear to the wall, tools and controlled storage to cabinets, and seasonal overflow to verified overhead space.
Your info stays private · Typical response: under 1 hour · No obligation
