Bulky equipment
Larger cases, recreation gear, shop equipment, and household items that need deeper lockers.
Cabinet Sets
Deep-Storage 7-Piece 108-Inch Cabinet Set
A nine-foot, 24-inch-deep cabinet wall for bulkier gear and more enclosed capacity.
From $5,950 installed
- Size
- Depth: 24 in; Installed Height: 76.75 in; Width: 108 in
- Usable storage
- Approximately 18 sq ft wall-to-floor layout envelope; usable internal area varies by configuration
- Rated capacity
- Base cabinet load: 700 lb; Layout footprint: 18 sq ft; Shelf load: 200 lb; Tall locker load: 900 lb
Available colors and finishes
- Black
- Gray
- White with platinum doors
- Bamboo worktop
- Stainless-steel worktop

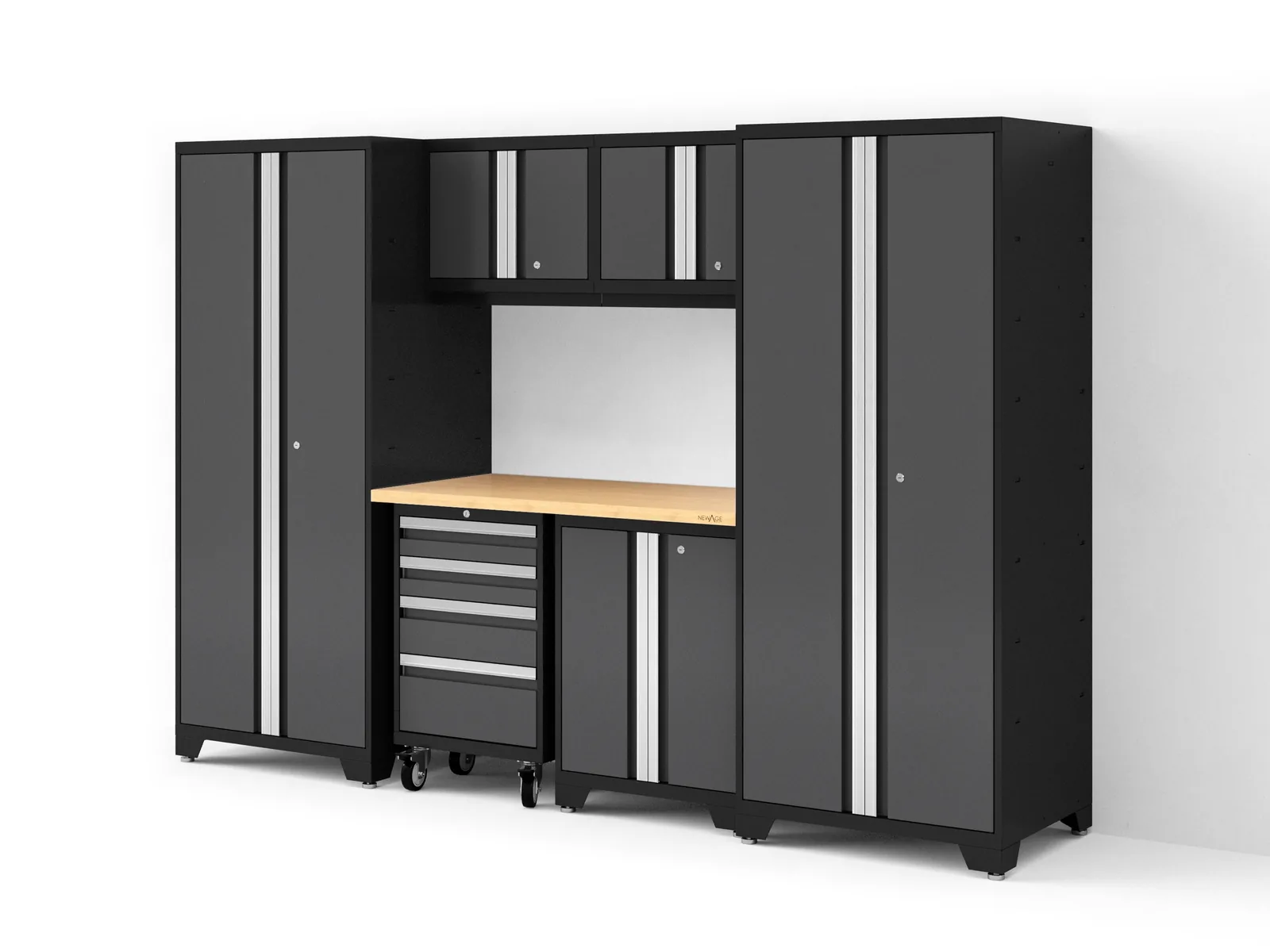

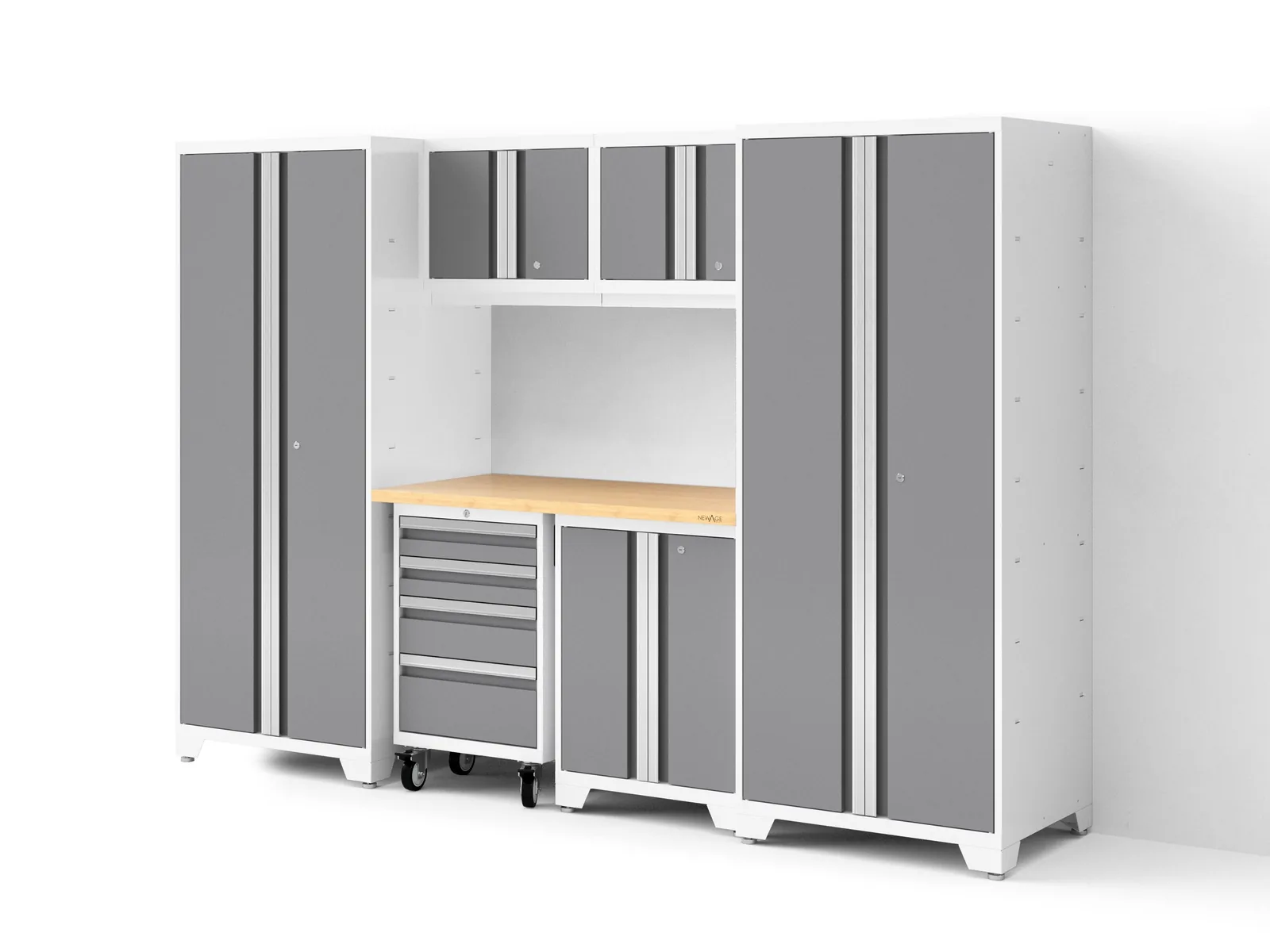

Images show the preferred configuration and available finish examples. The written quote confirms the exact product, finish, quantities, installed limit, and price before ordering.
Storage Job
What It Stores Well
A deeper steel cabinet configuration for bulky equipment and more enclosed storage. The photo is representative; Ace may use a comparable system that meets or exceeds the listed fit, construction, capacity, finish, and warranty requirements.
Power-tool storage
Saws, drills, chargers, cases, and accessories organized near the worktop.
Deeper project zone
A 24-inch surface for projects, provided vehicle and walkway clearance remains safe.
Strong matches
- Enclosed storage
- Tools
- A dedicated work zone
Know the limitations
- 24-inch depth needs more clearance than standard cabinets
- Finish, worktop, accessories, and arrangement affect price
- Layout envelope is not internal shelf area
- A lockable household cabinet is not automatically approved hazardous-material storage
Technical Specifications
Measurements, Materials, and Limits
- Overall width
- Approximately 108 in
- Cabinet depth
- 24 in
- Installed height
- Approximately 76.75 in
- Steel construction
- 24-gauge frames with 20-gauge shelves
- Tall-locker rating
- Up to 900 lb, component-specific
- Base-cabinet rating
- Up to 700 lb, component-specific
- Shelf rating
- Up to 200 lb each, component-specific
Construction
24-gauge frames with reinforced 20-gauge shelves
Warranty
Selected cabinet system includes a limited lifetime product warranty or an approved equivalent.
What is included
- Two deep tall lockers
- Upper cabinets
- Drawer and base storage
- Choice of bamboo or stainless-steel worktop
- Leveling legs, wall anchoring, assembly, and alignment
Care
Wipe powder-coated steel with a soft damp cloth and mild cleaner. Inspect drawers, hinges, locks, leveling feet, and anchors periodically.
Fit Check
Will It Fit Your Garage?
Final approval requires a level installation area and confirmation of clear wall width, depth, door swing, outlets, base conditions, and worktop selection.
- 1
At least 108 in of uninterrupted wall
- 2
24 in cabinet depth plus vehicle, walking, door, and drawer clearance
- 3
Ceiling clearance for the installed height
- 4
A level floor and suitable wall anchoring
- 5
A layout preserving electrical and utility access
Safety and Loading
Before Anything Is Installed
Tall and upper cabinets require anti-tip and wall anchoring.
Observe each component load limit.
Keep household chemicals in original labeled containers and follow their storage instructions.
Product ratings assume the specified installation and loading conditions. Ace states the approved installed limit in writing after the site review.
Installed Packages
Where This Product Fits in a Complete Build
Product Questions
Frequently Asked Questions
Why choose 24-inch depth?
It fits bulkier cases and equipment and provides a deeper work surface, but it needs more vehicle and walkway clearance.
Can the arrangement change?
Compatible components can often be adjusted after the site layout and budget are confirmed.
Product Confirmation
The Specification Is the Promise
Ace selects storage by the dimensions, construction, capacity, finish, compatibility, warranty, and storage job shown here. If the preferred item is unavailable, we may propose an equivalent or better substitute. You receive the exact product, finish, quantities, limits, and installed price in writing before anything is ordered.
Plan the Whole Storage Layout
Match daily-use gear to the wall, tools and controlled storage to cabinets, and seasonal overflow to verified overhead space.
