Seasonal totes
Holiday décor, off-season clothing, and labeled family archives accessed only a few times per year.
Overhead Racks

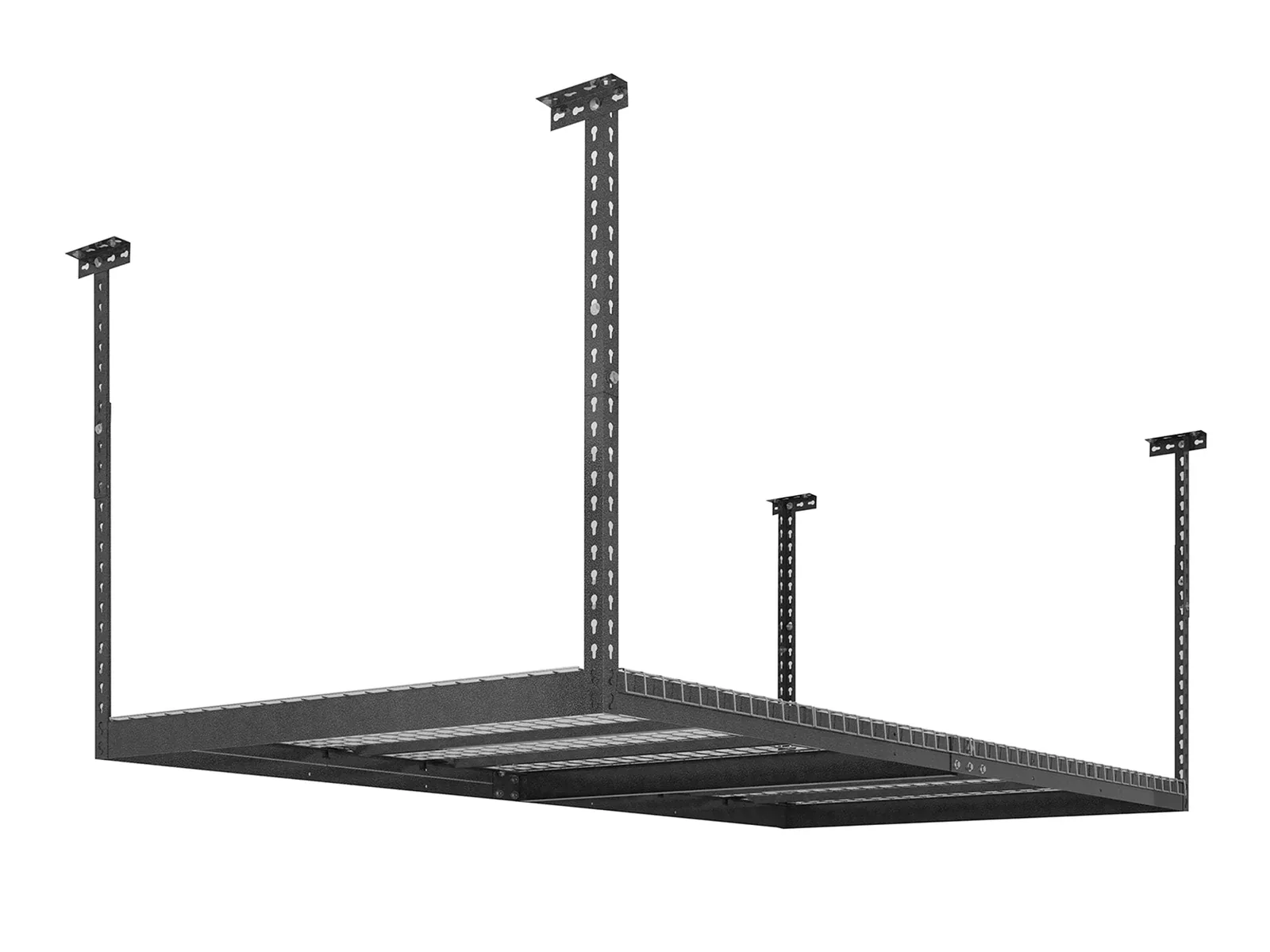

Adjustable 4×6–4×8 Overhead Rack
An adjustable ceiling rack with 24–32 square feet of deck space for seasonal bins and bulky, infrequently used gear.
$875 installed
- Size

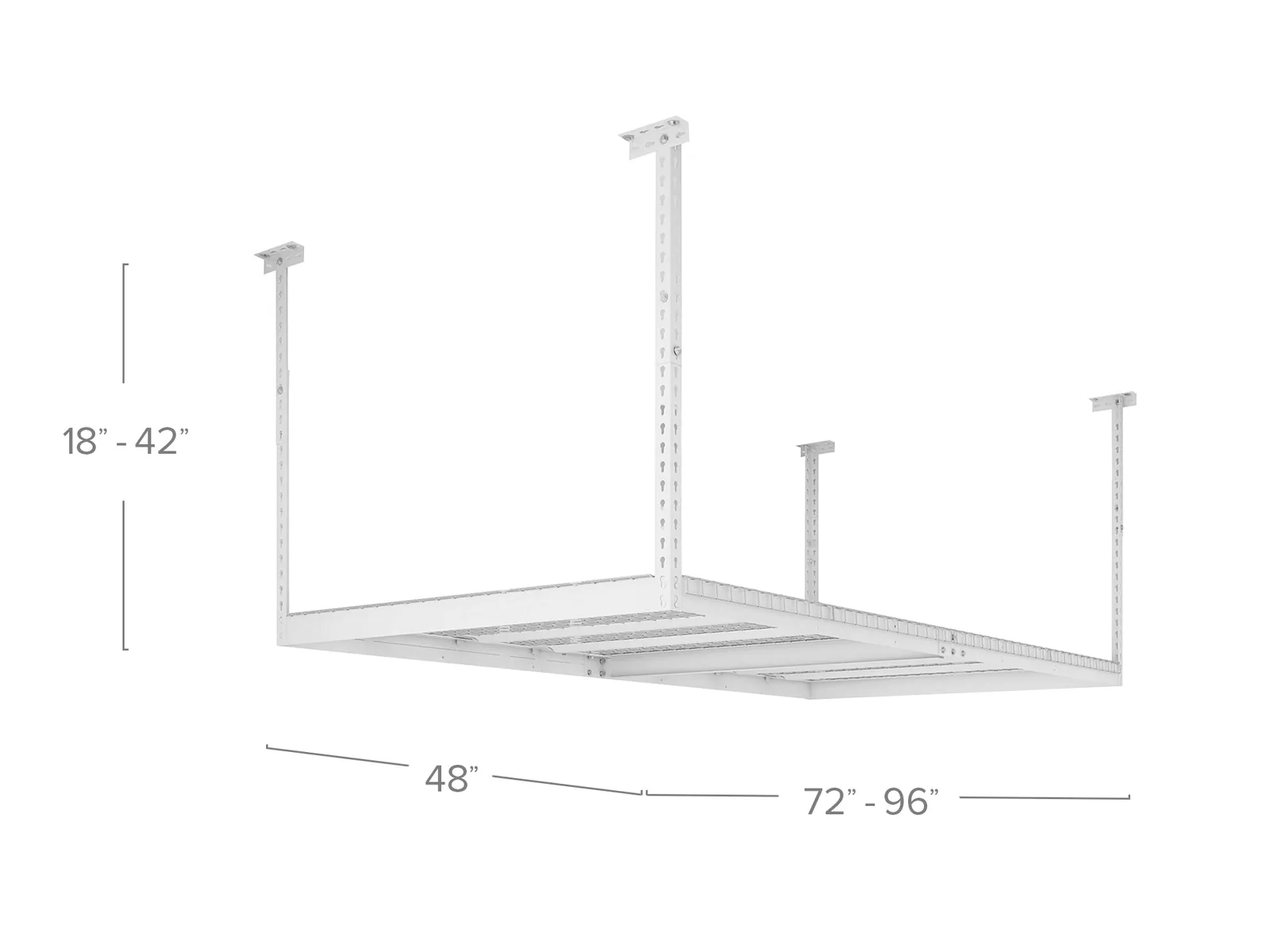

- Depth: 48.2 in; Drop: Adjustable maximum: 42 in, Adjustable minimum: 27 in, Fixed: 18 in; Length: 72.43–96.43 in
- Usable storage
- 24–32 sq ft of deck area; up to approximately 104 cu ft at the largest configuration
- Rated capacity
- Deck Area: 24–32 sq ft; Maximum evenly distributed load: 600 lb; Maximum storage volume: 104 cu ft
Available colors and finishes
- White
- Gray

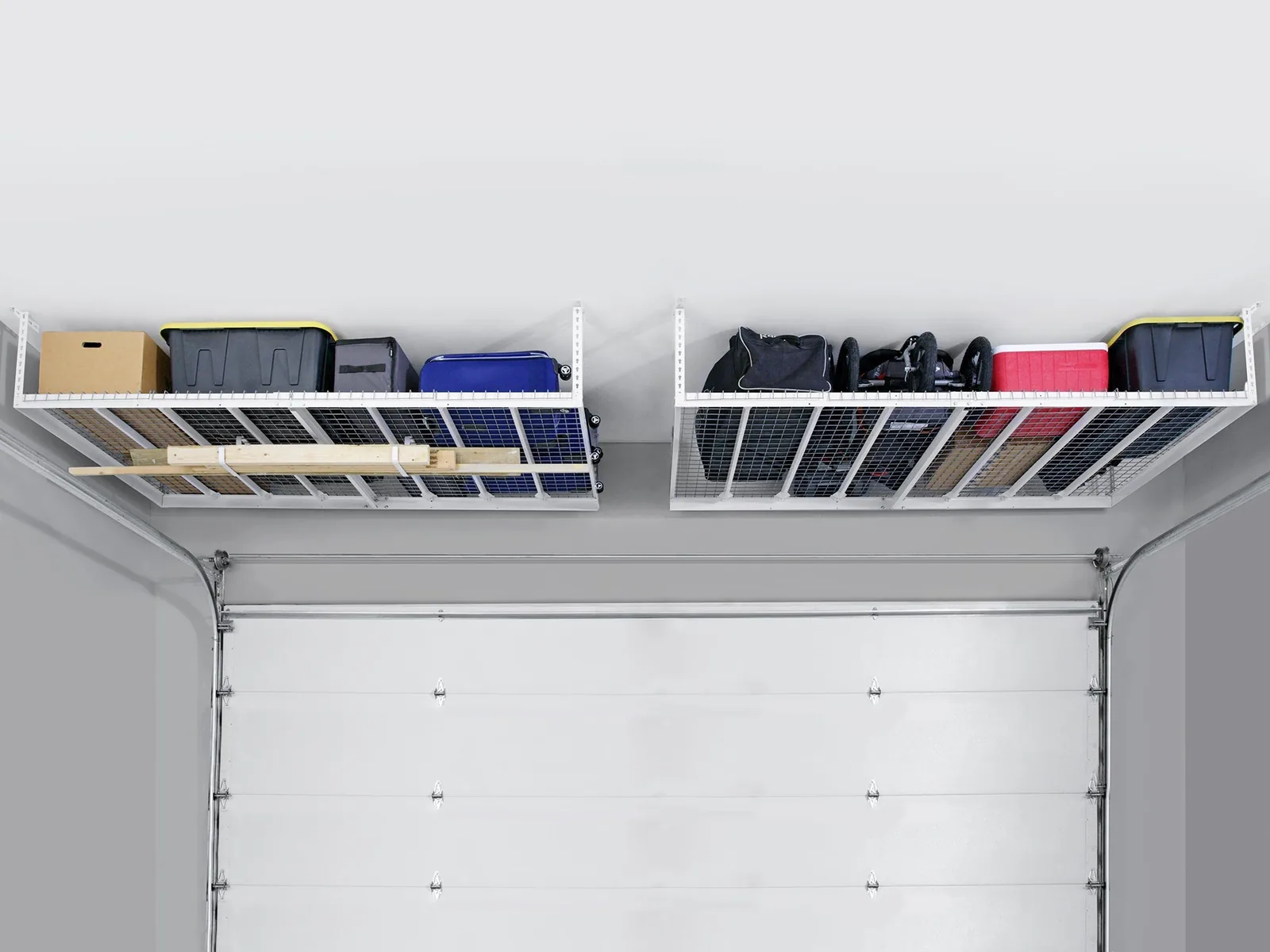

Images show the preferred configuration and available finish examples. The written quote confirms the exact product, finish, quantities, installed limit, and price before ordering.
Storage Job
What It Stores Well
This rack can be installed as a six-, seven-, or eight-foot run to make better use of a clear ceiling zone. Its four-foot depth fits common storage totes side by side, while two drop-height options help balance storage volume with door and vehicle clearance.
Camping and travel gear
Sleeping bags, tents, folding chairs, empty coolers, and luggage that would otherwise take up floor space.
Bulky lightweight items
Wreath containers, sports bags, and similar items that use space without concentrating excessive weight.
Strong matches
- Seasonal storage totes
- Holiday décor
- Camping gear
- Luggage
- Bulky lightweight overflow
Know the limitations
- Not intended for daily-use items
- The online planner cannot approve ceiling structure or final load suitability
- Side-by-side or changed mounting layouts may reduce allowable load
- Not installed into unsupported drywall or unverified steel framing
Technical Specifications
Measurements, Materials, and Limits
- Installed length
- 72.43–96.43 in
- Deck depth
- 48.2 in
- Ceiling drop
- 18 in fixed or 27–42 in adjustable
- Deck area
- 24–32 sq ft
- Storage volume
- Up to approximately 104 cu ft
- Rated load
- 600 lb evenly distributed
- Required support
- Suitable solid-wood or engineered-wood ceiling structure, verified on site
Construction
Heavy-gauge powder-coated steel frame with steel wire deck and raised perimeter edges
Warranty
Limited lifetime product warranty; workmanship coverage is stated in the Ace quote.
What is included
- Adjustable steel rack frame and wire deck
- Ceiling-mounting brackets and drop assemblies
- Manufacturer-specified structural mounting hardware
- Professional layout, assembly, mounting, and load-label review
Care
Periodically check fasteners, brackets, wire deck, and stored loads. Keep loads dry, evenly distributed, and within the written limit.
Fit Check
Will It Fit Your Garage?
Professional installation includes a site-specific review of ceiling structure, joist direction and spacing, door travel, tracks, opener, lighting, attic access, vehicle clearance, rack drop, and intended load.
- 1
One clear ceiling rectangle at least 72.43–96.43 in long by 48.2 in deep
- 2
Verified wood or engineered-wood ceiling support and compatible joist direction
- 3
Clearance from the fully open garage door, tracks, opener rail, lights, beams, and attic access
- 4
Safe clearance above the tallest parked vehicle, open hatch, and walking path
- 5
A mounting height the customer can reach safely with an appropriate ladder
Safety and Loading
Before Anything Is Installed
The 600 lb limit includes accessories and every stored item and assumes an evenly distributed load.
Do not stand, climb, jump, or hang from the rack.
Keep appropriate heavier items near structural supports and within the written installed limit.
Product ratings assume the specified installation and loading conditions. Ace states the approved installed limit in writing after the site review.
Installed Packages
Where This Product Fits in a Complete Build
Product Questions
Frequently Asked Questions
How many storage totes fit?
The rack provides 24–32 square feet of deck area. Tote count depends on actual tote length and width.
Does a 10-foot ceiling guarantee fit?
No. Door travel, openers, lights, beams, vehicle height, rack drop, joists, and intended load still require an on-site check.
Product Confirmation
The Specification Is the Promise
Ace selects storage by the dimensions, construction, capacity, finish, compatibility, warranty, and storage job shown here. If the preferred item is unavailable, we may propose an equivalent or better substitute. You receive the exact product, finish, quantities, limits, and installed price in writing before anything is ordered.
Plan the Whole Storage Layout
Match daily-use gear to the wall, tools and controlled storage to cabinets, and seasonal overflow to verified overhead space.
